Custom Fonts

The library comes with built-in support for several fonts (CUSONG, SIMSUN, VCR_OSD_MONO). However, you can also use your own TTF files.

Usage

To use a custom font with the pypixelcolor library, you can specify the path to your TTF font file when sending text. Below is an example of how to do this:

import pypixelcolor

if __name__ == "__main__":
    client = pypixelcolor.Client("AF:1D:E1:BD:5C:80")
    client.connect()
    client.send_text("Hello", font="./Minecraft.ttf")
    client.disconnect()

A file must be created named with the same name as the TTF file but with a .json extension (e.g., Minecraft.json) in the same directory as the TTF file, containing the font metadata. Here is an example of what the JSON file should look like:

{
  "name": "Minecraft",
  "metrics": {
    "16": {
      "font_size": 16,
      "offset": [0, 0],
      "pixel_threshold": 70,
      "var_width": false
    },
    "24": {
      "font_size": 24,
      "offset": [0, -1],
      "pixel_threshold": 80,
      "var_width": false
    },
    "32": {
      "font_size": 25,
      "offset": [0, 2],
      "pixel_threshold": 85,
      "var_width": false
    }
  }
}

JSON File Structure

• name: The name of the font.
• metrics: A dictionary where each key is a character height size (in pixels, 16, 24 or 32) and the value is another dictionary containing:
• font_size: The size of the font to be used.
• offset: A list of two integers representing the x and y offset for rendering the font.
• pixel_threshold: An integer value that determines the pixel intensity threshold for rendering the font.

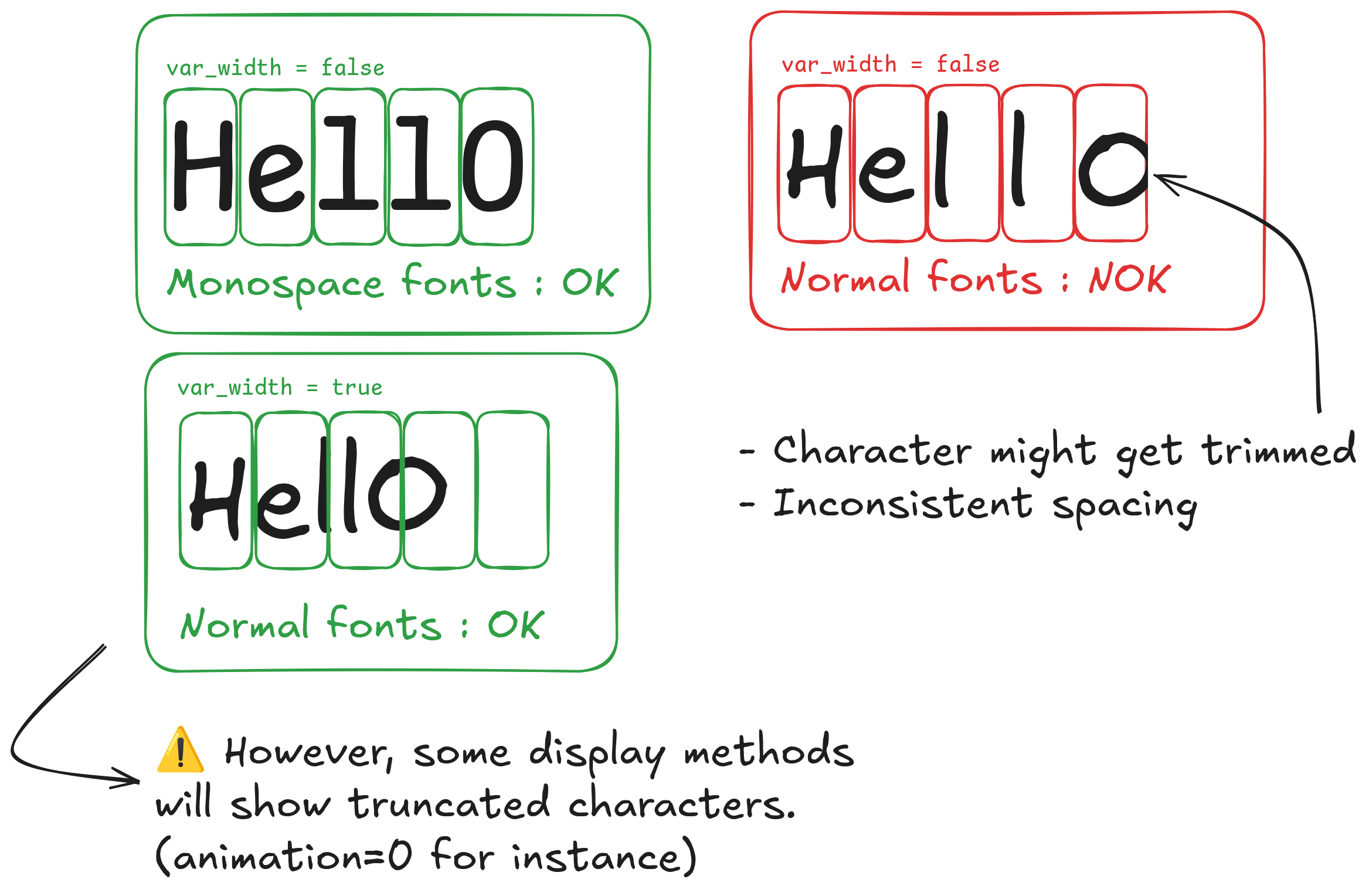

• var_width: A boolean indicating whether the font is variable width or fixed width. See the schema below for more details.

Notes

• Ensure that the TTF and JSON files are in the same directory.
• The font sizes specified in the JSON file should match the sizes you intend to use when sending text.
• Adjust the offset and pixel_threshold values as needed to achieve the desired appearance on your device.
